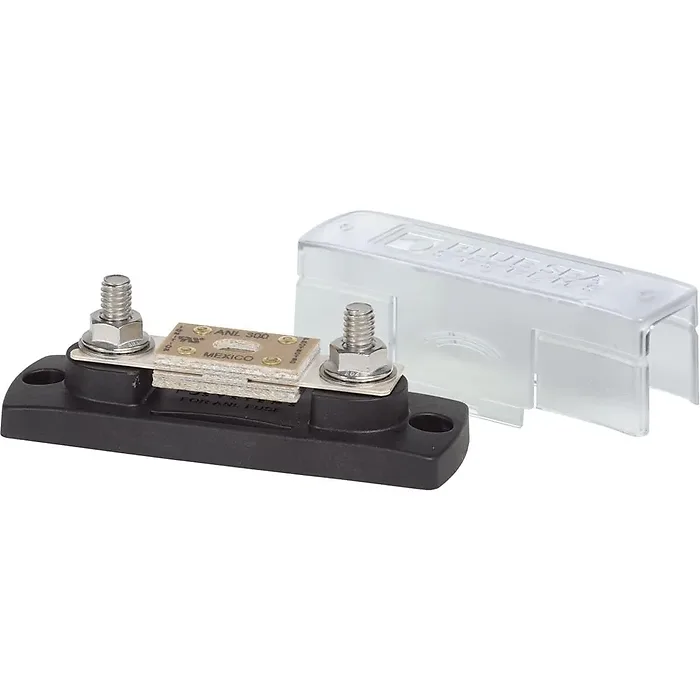

Blue Sea 5005 ANL Fuse Block with Insulating Cover 35 to 300 Amp

MFG No: 5005
SKU No: HADQ8PKGJW
UPC: 632085050054
MFG. Name: Blue Sea Systems
Available: 29
Condition: New

$23.62


Blue Sea Systems ANL Fuse Block with Insulating Cover - 35 to 300A

Model: 5005-BSS
  • Accepts 5/16" (M8) ring terminals
  • For use on systems up to 32 Volts DC
  • Swing out design allows replacement of the fuse without removing fasteners
  • Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
  • UL 94-V0 base resists high heat
  • Insert molded studs ensure secure fuse mounting
  • Insulating cover satisfies ABYC/USCG requirements
  • Cover breakouts allow wire access in any direction
  • Fuse sold separately
Specifications
Maximum Voltage32V DC
Base MaterialReinforced Polycarbonate
Fuse Mounting BlocksTin-Plated Copper
Maximum Cable Size2/0 AWG
Maximum Torque110 in-lb (12.43 Nm)
Terminal Stud Size5/16" - 18 (M8)
