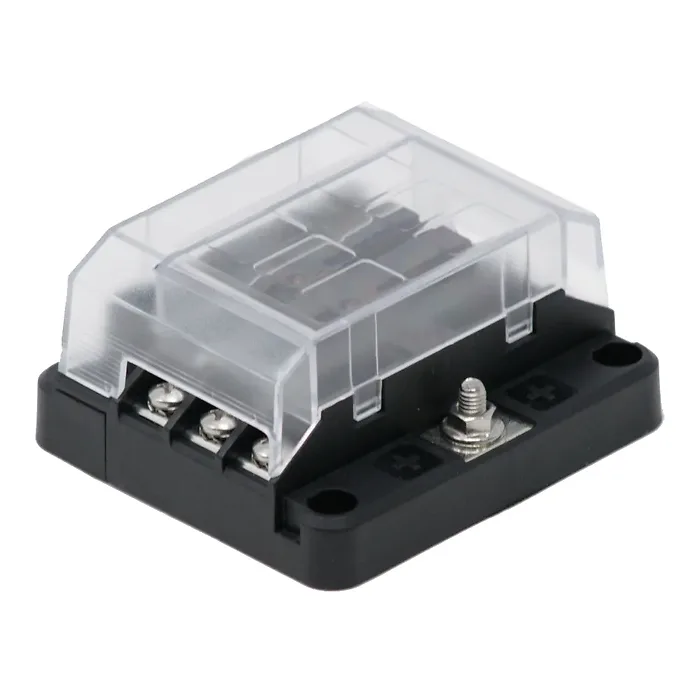

Egis 6-Position LED Fuse Block with Modular Design

This versatile 6-position fuse block features a modular design that allows for seven unique configurations, streamlining stock for various build requirements. Equipped with LED indication, this fuse block enhances diagnostics and maintenance.

Applications:

• LED indicators for blown fuses facilitate quick system fault corrections and enable remote diagnosis.
• Designed for harsh environments with durable stainless steel self-locking hardware and optional weather-proof labels available in standard or customized options.

Specifications:

• Maximum Current (Entire Block): 100 Amps
• Maximum Current (Per Circuit): 30 Amps
• Max Output Wire Size: #10 AWG
• Voltage Range: 0-36 VDC
• Number of Fuse Positions: 6
• Compatible Fuse Types: ATO / ATC / ATF

Warning: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

• Durable construction using high-temperature materials and stainless steel hardware for versatile mounting options.
• Accepts ATO style fuses ranging from 1 to 40 Amps, ensuring protection for branch circuits.
• Fully compliant with SAE circuit protection standards for thermal and short circuit events.
• Two spare locations per circuit for spare fuses or test resistors, aiding in siren volume adjustments during evaluations.
• Designed with 100% non-ferrous corrosion-resistant materials, ensuring longevity and reliability.
• Blown fuse LED indication on each output circuit simplifies troubleshooting and enhances user experience.
• Cover and label recesses protect terminal studs and cables from accidental shorts.
