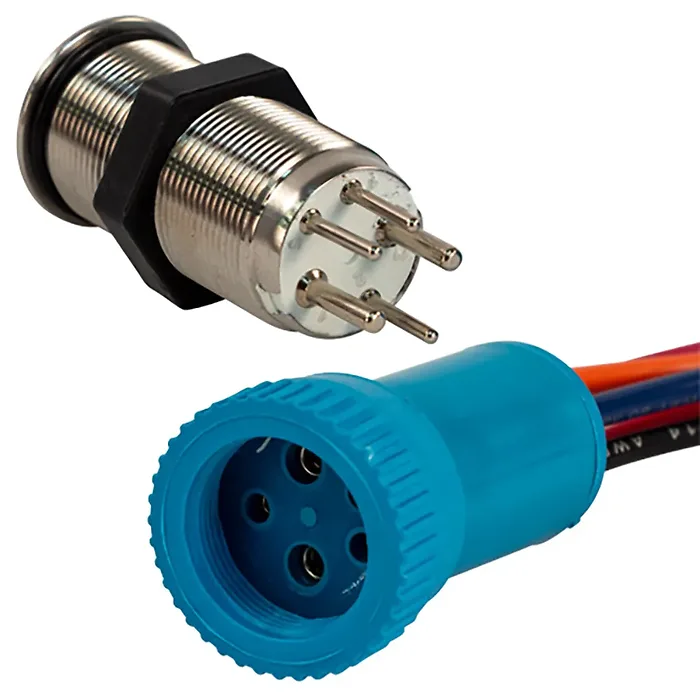

19mm LED Push Button Switch - Waterproof - Blue/Red

MFG No: 9057-1113-1
SKU No: YQUIT0VLV3
MFG. Name: BlueWater
Available: 17
Condition: New

$61.60


19mm LED Push Button Switch - Waterproof - Blue/Red

This high-quality stainless-steel push button switch adds a sleek modern accent to any dash panel. It features an "Off/On" contact setup and is designed for durability.

This switch boasts a waterproof rating of IP69K due to its specially designed body and included gasket. It shines with a blue LED backlight at night, which switches to red when the function is activated for clear visibility.

Installation Instructions:

Drill a 19mm hole into material up to 6mm thick. Connect the three color-coded contacts for the switch and the two LED contacts for power connection.


  • 1 ft. lead included
  • Waterproof rating: IP69K
  • Function: Off-On (standard contact)
  • LED Color: Blue when off, Red when on
  • Rated for: 15A / 12-24VDC
  • Mechanical life: 50,000 cycles
  • Electrical life: 10,000 cycles
