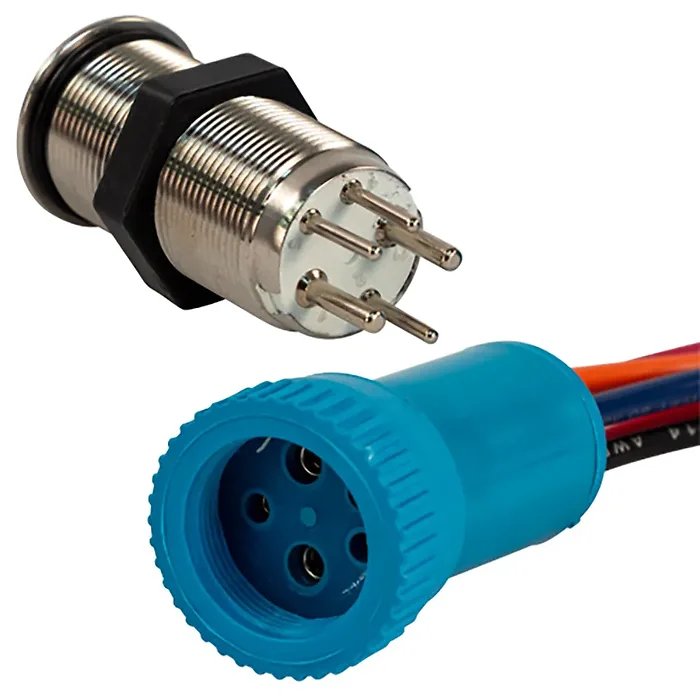

19mm Momentary Push Button Switch with LED Indicators

This sleek, stainless steel button enhances any dashboard while providing a modern touch. Featuring an “Off/(On)” momentary contact, this push button is both functional and stylish.

With a waterproof rating of IP69K, thanks to its innovative body design and included gasket, this switch is built to withstand the elements. At night, the switch is illuminated with an eye-catching blue LED, which turns red to clearly indicate when the function is active.

Installation Instructions:

Drill a 19mm hole in any material up to 6mm thick. Connect the three color-coded contacts for the button and the two for the LED to complete the installation.

• 1 ft. lead for easy installation
• Waterproof with IP69K rating
• Blue LED backlighting changes to red when active
• Momentary contact switch rated for 15A at 12-24VDC
• Durable stainless steel construction
• Long mechanical life of 50,000 cycles
• Electrical life of 10,000 cycles
