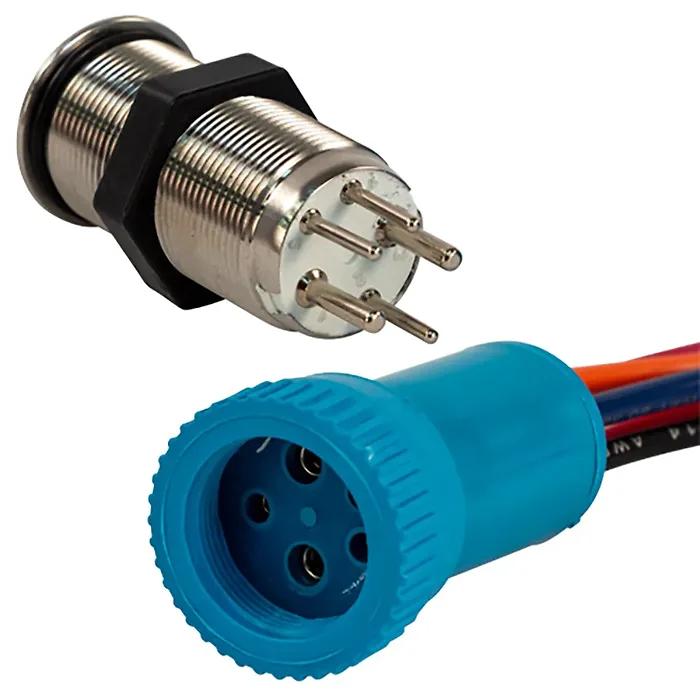

19mm Push Button LED Switch - Waterproof Design

This modern stainless-steel push button switch is designed to enhance the look of any dash while providing reliable functionality. With a Nav/Anc contact, this switch is versatile for various applications.

Rated at IP69K for waterproofing, it is built to withstand tough environments. The button is backlit with blue LED light for excellent visibility at night, and it changes to red when activated to clearly indicate the function is on.

Key Features:

• 1 ft. lead wire for easy installation

Specifications:

• Function: Nav/Anc
• Off/1st On: Blue/Green
• 2nd On: Red
• Rear Mark Page: White dot
• Switch Rating: 15A/12 – 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation Instructions:

Drill a 19mm hole into any material up to 6mm thick. Connect the three contacts for the button (color-coded for safety), and then connect the two contacts for the LED.

• Modern stainless steel design
• IP69K waterproof rating
• Easy to install with a 1 ft. lead
• Backlit with blue LED for visibility
• Indicator light turns red when activated
• Long mechanical and electrical life
